Running Time Simulator
power with Explorer 2000 Pro ( 2160Wh Capacity) (2160Wh Capacity)
Please enter the wattage of the appliance (not exceeding 2200W)
Durable Design for Outdoor Life
The power station features heat dissipation and high temp protection making it more durable.The IP67 Waterproof Rating allows the 200w solar panel to withstand harsh and wet weather.
How Many Solar Panels Do I Need
Choose One Type of Solar Panel
Recharging Time
Sustainable Energy Saving
Product Recommendation
Product Details
Specs in Pictures
Specs
What's in The Box
Notes:
1. Solar panel types and quantity depends on your purchase.
2. Buy 2 SolarSoga, get 1*Solar Panel Connectors.
3. Buy 4 or 6 SolarSoga, get 2*Solar Panel Connectors.
User Manual
1. Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
3. Store in a dry and cool place, avoid contact with corrosive substances, and keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
FAQ
-
A: No, because this product is a lithium battery. According to the International Standards & Regulations for the Transportation of Hazardous Materials, no lithium batteries with more than 100 watt hours may be allowed in carry-on bags.
-
A: Yes, you can. When charged with AC input, it supports a maximum power output of 1800W. When charged with AC input + DC input ( i.e. solar charging or car charging) simultaneously - it supports a maximum power output of 1800W. When charged with DC input (i.e. solar charging or car charging), it supports a maximum power output of 2200W.
-
A: If the battery is to be unused for a long time (more than 3 months), it should be maintained at 60-80% of the rated capacity (it's recommended to check and charge every 3 months). Store it in a dry and cool place with temperature range between 0 ℃~40 ℃, and humidity 0%~60%. Avoid contact with corrosive substances, and far from fifire and heat sources.
-
A: We are very sorry, but it cannot be used to jump start a vehicle. However, it can be used as power supply for automobiles. You can recharge the car via a Jackery power supply cord, which is available for purchase separately.
-
A: In case of forgetting to turn off the output (causing the battery to drain), the Low Power Mode will be turned off by default. That is, when the port is connected to a small load device(AC Output≤25W, USB Output≤2W, Car Port≤2W) for 12 hours, the device will automatically be turned off. In case you want to resume recharging, press the car port button/USB button/AC button to restart the device. If you want to turn on the Low Power Mode, long press the AC Button and DISPLAY until the Low Power Mode icon appears on the screen. If you need to turn off the Low Power Mode, repeat the above operation until the Low Power Mode icon disappears on the screen.
-
A: Please check whether the load device is broken firstly. If the device is normal, press the USB Button to restart the output.
-
1. Jackery Explorer series
2. Sealed lead-acid battery
3. Colloidal lead-acid batteries
4. The open lead-acid batteries
-
Dust and dirt on the surface should first be removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
-
A: Yes the material is fireproof, made of PC+ABS material with a 94V-0 fire rating.
-
Series, and can realize up to 3 solar panels in series.
-
A: The Explorer 1500 Portable Power Station Y cable is connected in parallel and can be used for the Explorer 2000 Pro Portable Power Station, when connecting solar panels below 100W and 68W.
However, the Y cable of the Explorer 2000 Pro Portable Power Station is connected in series, and cannot be used for the Explorer 1500 Portable Power Station. -
A: At present, under standard light source conditions, 6* 200W solar panels can be fully charged in 2.5 hours.
However, the power of the solar panels will be affected by various factors including angle/temperature/light intensity, with the actual customer's experience differing due to differences in the environment where the product is used. -
A: Yes, an Explorer 2000 Pro Portable Power Station Y cable can connect up to 3 solar panels of the same type.
Note: Do not mix solar panels of different models. -
A: The Solar Generator 2000 Pro uses a new generation of technology, not requiring an adapter, and can be charged directly using an AC power cord.
-
A: No, unfortunately no solar panel extension cable is included, however we have a 5m solar panel extension cord available.
-
A: AC charging cable: 2 meters
Car charger cable: 2 meters
Solar charging cable: 3 meters -
A: If the charging cable or car charging cable is lost, please contact us at hello.eu@Jackery.com, where we will happily reissue a new one for free.
-
A: The S/N serial number can be located on the top at the back of the product.
-
A: Yes, the Explorer 2000 Pro Portable Power Station has an MPPT controller. The MPPT controller of Jackery E2000 Pro features a 97% solar charging conversion efficiency rate.
-
A: The Explorer 2000 Pro Portable Power Station uses a pure sine wave inverter.
-

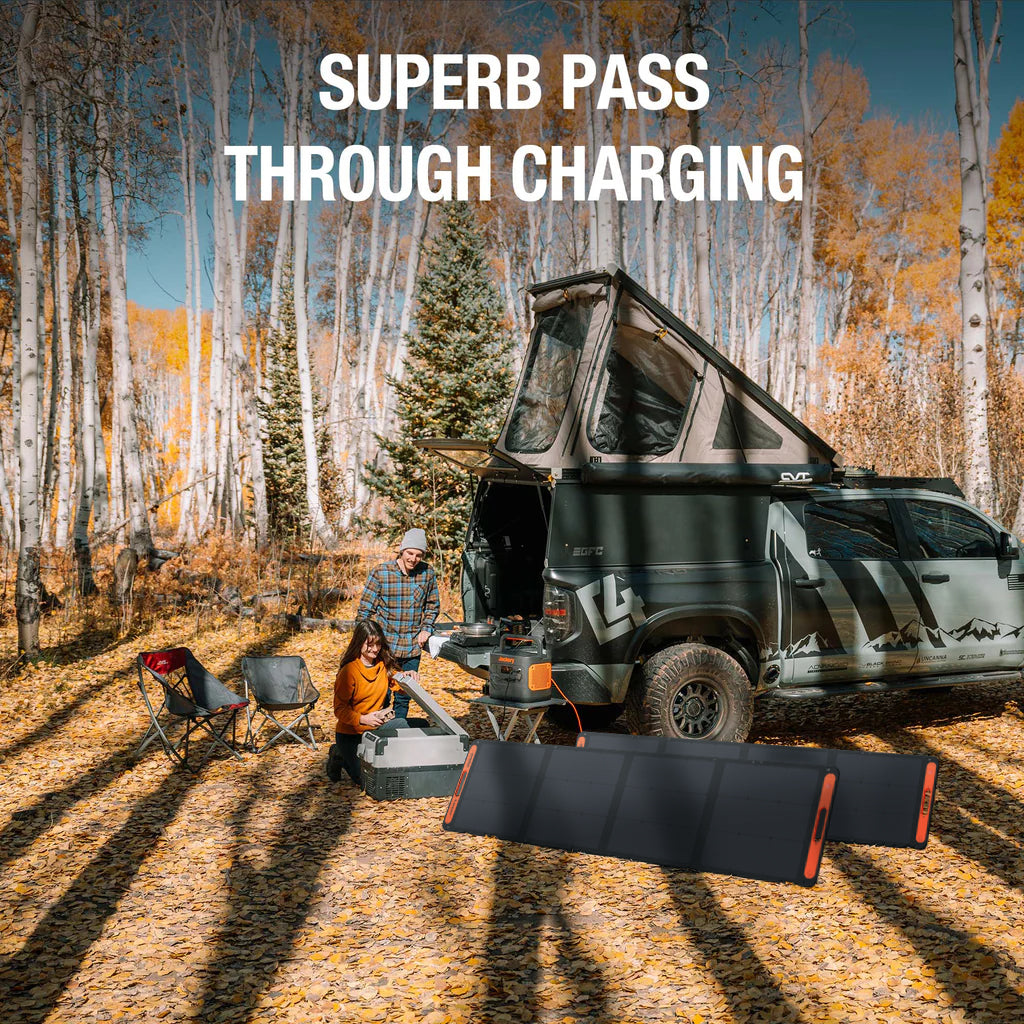

A: The Solar Generator supports pass through charging without compromising battery life.
When charging with AC input, the maximum power of AC output is 1800W.
When charging with DC input (charging via a solar panel or car charger, the AC output maximum power is 2200W.
When AC input + DC input (charging via a solar panel or car charger) are charged at the same time, the maximum AC output power is 1800W. -
A: The biggest advantage is solar fast charging, supporting charging with 6 200W solar panels, fully charged in under 2.5 hours.
-
A: When the device wattage is lower than the figures in the sheet, the Explorer 2000 Pro Portable Power Station will be automatically turned off for 12 hours.
-
A: The car charger can be fully charged in as quickly as 24 hours;
Wall charging can be fully charged in as quickly as 2 hours;
6*200W solar panels can be fully charged in just 2.5 hours. -
A: The Explorer 2000 Pro Portable Power Station uses a ternary lithium battery, and the battery brand is a BAK battery. The battery itself is not particularly different.
-
A: After 1000 times of full discharge the cycle life has only 80% remaining of its capacity. It is not the product cannot be used, but the capacity is not like the capacity of 2160Wh when it was newly purchased.
-
A: The main purpose of this suggestion is to prevent users running out of battery power when they are required to to use electricity in an emergency.
-
A: No, the three cannot be used at the same time. The solar panel and the car charger cannot be used at the same time - otherwise, the fuse of the customer's car charger may be blown.
-
A: 1. Turn on "Low Power Mode". Then, press and hold the "AC output power button + digital display" until the low power mode icon appears on the screen.
2. In low power mode, please turn off the power when not using this product, to avoid running out of power due to forgetting to turn off the power station.
3. Turn off "low power mode" and long press the "AC output power button + DISPLAY" until the low power mode icon disappears on the screen. ""
- FEATURES
- TECH SPECS
- FAQ & REVIEW
Solar Generator 2000 Pro
Reinventing Solar Charging
The Solar Generator 2000 Pro delivers colossal charging capacity of 2,160 Wh, utilizing the sun's magnificent energy, powering it all - refrigerators, ovens, microwaves and more. Solar Charging has transformed forever - journey to the world's most spectacular places with the sun's powerful energy, road trip and explore the great outdoors and enjoy life to the fullest with friends. Solar Power is here.
The Solar Generator 2000 Pro delivers colossal charging capacity of 2,160 Wh, utilizing the sun's magnificent energy, powering it all - refrigerators, ovens, microwaves and more. Solar Charging has transformed forever - journey to the world's most spectacular places with the sun's powerful energy, road trip and explore the great outdoors and enjoy life to the fullest with friends. Solar Power is here.
Multiple Charging Methods
SAFETY AND RELIABILITY
SUPERIOR BMS
HEAT DISSIPATION &
HIGH TEMP PROTECTION
QUIET AND PEACEFUL
UNDER 53 DB
POWER ON THE GO
Foldable handle for easy transportation & storage
ULTRA-LONG STANDBY
1000 charge cycles from an 80% battery level & support up to 8 years of service life
GO GREEN
100% clean and unlimited solar energy with smart MPPT controller for your camping or family emergency storage.
(3+2) Year Warranty
We provide our customers with 3 years warranty for every purchase of SolarSaga 200 and an extra 2-year extended warranty (apply automatically if purchased from our our official website). If purchase from the third party supplier, you need to fill out a form to claim the extended warranty.
Chat with us
Our excellent 24/7 customer service can answer any of product questions.
We provide our customers with 3 years warranty for every purchase of SolarSaga 200 and an extra 2-year extended warranty (apply automatically if purchased from our official website). If purchase from the third party supplier, you need to fill out a form to claim the extended warranty.
Our excellent 24/7 customer service can answer any of product questions.
Unser 24/7-Kundendienst beantwortet alle Ihre Fragen.
(3+2) Year Warranty
We provide our customers with 3 years warranty for every purchase of SolarSaga 200 and an extra 2-year extended warranty (apply automatically if purchased from our our official website). If purchase from the third party supplier, you need to fill out a form to claim the extended warranty.
Chat with us
Our excellent 24/7 customer service can answer any of product questions.
We provide our customers with 3 years warranty for every purchase of SolarSaga 200 and an extra 2-year extended warranty (apply automatically if purchased from our official website). If purchase from the third party supplier, you need to fill out a form to claim the extended warranty.
Our excellent 24/7 customer service can answer any of product questions.

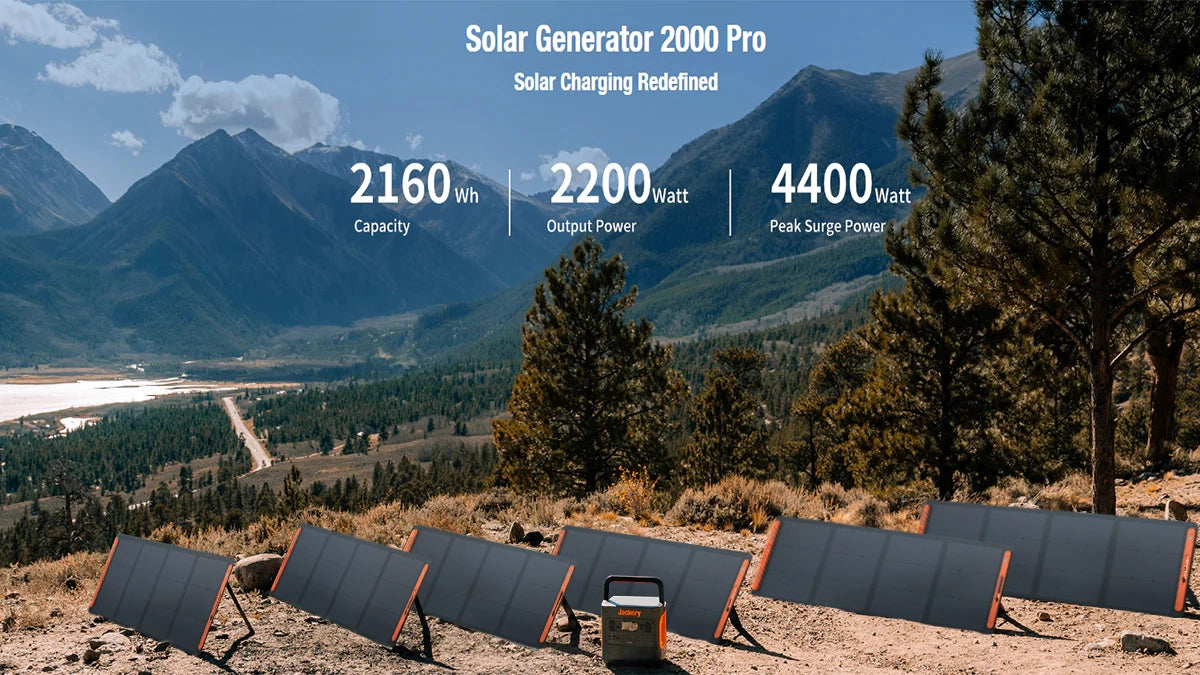

Solar Generator 2000 Pro
Solar Charging Redefined
Reinventing Solar Charging
The Solar Generator 2000 Pro delivers colossal charging capacity of 2,160 Wh, utilizing the sun's magnificent energy, powering it all - refrigerators, ovens, microwaves and more. Solar Charging has transformed forever - journey to the world's most spectacular places with the sun's powerful energy, road trip and explore the great outdoors and enjoy life to the fullest with friends. Solar Power is here.
Recharging Time Comparison
SAFETY AND RELIABILITY
SUPERIOR BMS
HEAT DISSIPATION &
HIGH TEMP PROTECTION
QUIET AND PEACEFUL
UNDER 53 DB
POWER ON THE GO
Foldable handle for easy transportation & storage
ULTRA-LONG STANDBY
1000 charge cycles from an 80% battery level & support up to 8 years of service life
GO GREEN
100% clean and unlimited solar energy with smart MPPT controller for your camping or family emergency storage.
(3+2) Year Warranty
We provide our customers with 3 years warranty for every purchase of SolarSaga 200 and an extra 2-year extended warranty (apply automatically if purchased from our our official website). If purchase from the third party supplier, you need to fill out a form to claim the extended warranty.
Chat with us
Our excellent 24/7 customer service can answer any of product questions.
We provide our customers with 3 years warranty for every purchase of Solar Generator 2000 Pro and an extra 2-year extended warranty (apply automatically if purchased from our Official Website). If purchased from the third party supplier, you need to fill out a form to claim the extended warranty.
Our excellent 24/7 customer service can answer any of product questions.
Specifications of Explorer 2000 Pro
BATTERY INFO
Capacity: 1488Wh (36V, 41.3Ah)
Cell Chemistry: Panasonic 18650 Li-ion Batteries
Battery Life: 8 Years
Management System: Tesla BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 110VAC, 60Hz, 1800W (3600W Surge)
USB-A Output: 5V, 2.4A
Quick Charge 3.0 Output: 18W, 5-6.5V, 3A / 6.5-9V, 3A / 9-12V, 1.5A
USB-C Output: PD60W, (5V, 9V, 12V up to 3A)
Car Output: 12V, 10A
DC Input: 48V, 6.25A (Single 300W Max, Double to 600w Max)
RECHARGE TIMES
AC Adapter: 6 Hours
12V Car Adaptor: 13 Hours
2x SolarSaga 100W Solar Panel: 9 Hours
4x SolarSaga 100W Solar Panel: 4 Hours
GENERAL
Weight: 33.1 lbs (15 kg)
Dimensions (LxWxD): 14 x 10.4 x 12.7 in (35.6 x 26.4 x 32.3 cm)
Certification: FCC, ROHS, UN38.3
Warranty: 24 Months
Operating Usage Temperature: 14-104F (-10-40℃)
Optional Accessory: Jackery SolarSaga 100W Solar Panel
BATTERY INFO
Capacity: 2160Wh (43.2V 50Ah)
Cell Chemistry: Lithium-ion Battery
Lifecycle: 1000 cycles to 80%+ capacity
Management System: BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 120V, 60Hz, 2200W (4400W Peak)
USB-A Output: Quick Charge 3.0, 18W Max
USB-C Output: 100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
Car Output: 12V, 10A
AC Input: 120V, 60Hz, 15A Max
DC Input: 11V-17.5V, 8A Max, Double to 8A Max
17.5V-60V, 12A, Double to 24A/1400W Max
RECHARGE TIMES
AC Adapter: 2 Hours
12V Car Adapter: 24 Hours
6x SolarSaga 200W Solar Panel: 2.5 Hours
4x SolarSaga 200W Solar Panel: 4 Hours
2x SolarSaga 200W Solar Panel: 7.5 Hours
1x SolarSaga 200W Solar Panel: 14.5 Hours
GENERAL
Weight: 43 lbs (19.5 kg)
Dimensions (LxWxD): 15.1 x 10.5 x 12.1 in (38.4x26.90x30.75cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Warranty: (3+2) Year Warranty
Optional Accessory: Jackery SolarSaga 200W Solar Panel
BATTERY INFO
Capacity:
Cell Chemistry:
Lifecycle:
Management System:
2160Wh (43.2V 50Ah)
Lithium-ion Battery
1000 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 120V, 60Hz, 2200W (4400W Peak)
USB-A Output: Quick Charge 3.0, 18W Max
100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
USB-C Output: 12V,10A
Car Port: 120V, 60Hz, 15A Max
AC Input: 11V-17.5V, 8A Max, Double to 8A Max
DC Input: 17.5V-60V, 12A, Double to 24A/1400W Max
AC Output:
USB-A Output:
USB-C Output:
Car Port:
AC Input:
DC Input:
230V, 50Hz, 2200W (4400W Peak)
Quick Charge 3.0, 18W Max
100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
12V,10A
230V, 50Hz, 15A Max
11V-17.5V, 8A Max, Double to 8A Max
17.5V-60V, 12A, Double to 24A/1400W Max
RECHARGE TIMES
AC Adapter:
12V Car Adapter:
6x SolarSaga 200W Solar Panel:
2x SolarSaga 200W Solar Panel:
1x SolarSaga 200W Solar Panel:
2 Hours
24 Hours
2.5 Hours
7.5 Hours
14.5 Hours
AC Adapter:
12V Car Adapter:
6x SolarSaga 200W Solar Panel:
4x SolarSaga 200W Solar Panel:
2x SolarSaga 200W Solar Panel:
1x SolarSaga 200W Solar Panel:
2 Hours
24 Hours
2.5 Hours
4 Hours
7.5 Hours
14.5 Hours
GENERAL
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Warranty:
Optional Accessory:
43 lbs (19.5 kg)
15.1 x 10.5 x 12.1 in (38.4x26.90x30.75cm)
14-104F (-10-40℃)
(3+2) Years
Specifications of SolarSaga 200
SOLAR
Peak Power:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
200W
18V
11.12A
23.2V
11.76A
GENERAL
Weight:
Dimensions (folded):
Dimensions (unfolded):
Operating Usage Temperature:
Warranty:
17.5±0.5 lbs (8.0±0.3Kg)
540 x 615 x 40 mm
540 x 2320 x 25 mm
-10-65℃(14-149°F)
(3+2) Years
In The Box
Explorer 2000 Pro + 1xSolarSaga 200
- • Explorer 2000 Pro
- • 1* SolarSaga 200 Solar Panels
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 2* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 2xSolarSaga 200
- • Explorer 2000 Pro
- • 2* SolarSaga 200 Solar Panels
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 2* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 6xSolarSaga 200
- • Explorer 2000 Pro
- • 6* SolarSaga 200 Solar Panels
- • 2* Jackery Solar Series Connector
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 2* DC7909 to DC8020 Adapter
- • 1* User Manual
User Manual
Specifications of SolarSaga 200
SOLAR
Peak Power: 200W
Power Voltage: 18V
Power Current: 11.12A
Open Circuit Voltage: 23.2V
Short Circuit Current: 11.76A
General
Weight: 8.0±0.3Kg
Dimensions (folded): 540 x 615 x 40 mm
Dimensions (unfolded): 540 x 2320 x 25 mm
Operating Usage Temperature: -10-65℃(14-149°F)
Warranty: 36 Months
In The Box
Explorer 2000 Pro + 2xSolarSaga 200
- • Explorer 2000 Pro
- • 2* SolarSaga 200 Solar Panels
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 4xSolarSaga 200
- • Explorer 2000 Pro
- • 4* SolarSaga 200 Solar Panels
- • 2* Jackery Solar Series Connector
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
-
Explorer 2000 Pro + 6xSolarSaga 200
• Explorer 2000 Pro - • 6* SolarSaga 200 Solar Panels
- • 2* Jackery Solar Series Connector
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
User Manual
SOLAR
Spitzenleistung:
Leistungsspannung:
Stromstärke:
Leerlaufspannung:
Kurzschlussstrom:
200W
18V
11.12A
23.2V
11.76A
ALLGEMEINES
Abmessungen (zusammengeklappt):
Abmessungen (ausgeklappt):
Betriebstemperatur:
Garantie:
540 x 615 x 40 mm
540 x 2320 x 25 mm
-10-65℃(14-149°F)
36 Monate
Specifications of Explorer 2000 Pro
BATTERY INFO
Capacity: 1488Wh (36V, 41.3Ah)
Cell Chemistry: Panasonic 18650 Li-ion Batteries
Battery Life: 8 Years
Management System: Tesla BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 110VAC, 60Hz, 1800W (3600W Surge)
USB-A Output: 5V, 2.4A
Quick Charge 3.0 Output: 18W, 5-6.5V, 3A / 6.5-9V, 3A / 9-12V, 1.5A
USB-C Output: PD60W, (5V, 9V, 12V up to 3A)
Car Output: 12V, 10A
DC Input: 48V, 6.25A (Single 300W Max, Double to 600w Max)
RECHARGE TIMES
AC Adapter: 6 Hours
12V Car Adaptor: 13 Hours
2x SolarSaga 100W Solar Panel: 9 Hours
4x SolarSaga 100W Solar Panel: 4 Hours
GENERAL
Weight: 33.1 lbs (15 kg)
Dimensions (LxWxD): 14 x 10.4 x 12.7 in (35.6 x 26.4 x 32.3 cm)
Certification: FCC, ROHS, UN38.3
Warranty: 24 Months
Operating Usage Temperature: 14-104F (-10-40℃)
Optional Accessory: Jackery SolarSaga 100W Solar Panel
BATTERY INFO
Capacity: 2160Wh (43.2V 50Ah)
Cell Chemistry: Lithium-ion Battery
Lifecycle: 1000 cycles to 80%+ capacity
Management System: BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 230V, 50Hz, 2200W (4400W Peak)
USB-A Output: Quick Charge 3.0, 18W Max
USB-C Output: 100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
Car Output: 12V, 10A
AC Input: 230V, 50Hz, 15A Max
DC Input: 11V-17.5V, 8A Max, Double to 8A Max
17.5V-60V, 12A, Double to 24A/1400W Max
RECHARGE TIMES
AC Adapter: 2 Hours
12V Car Adapter: 24 Hours
6x SolarSaga 200W Solar Panel: 2.5 Hours
2x SolarSaga 200W Solar Panel: 7.5 Hours
1x SolarSaga 200W Solar Panel: 14.5 Hours
GENERAL
Weight: 43 lbs (19.5 kg)
Dimensions (LxWxD): 15.1 x 10.5 x 12.1 in (38.4x26.90x30.75cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Warranty: (3+2) Year
Optional Accessory: Jackery SolarSaga 200W Solar Panel
BATTERY INFO
Capacity:
Cell Chemistry:
Lifecycle:
Management System:
2160Wh (43.2V 50Ah)
Lithium-ion Battery
1000 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection
PORTS
AC Output: 230V, 50Hz, 2200W (4400W Peak)
USB-A Output: Quick Charge 3.0, 18W Max
100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
USB-C Output: 12V,10A
Car Port: 230V, 50Hz,15A Max
AC Input: 11V-17.5V, 8A Max, Double to 8A Max
DC Input: 17.5V-60V, 12A, Double to 24A/1400W Max
AC Output:
USB-A Output:
USB-C Output:
Car Port:
AC Input:
DC Input:
120V, 60Hz, 2200W (4400W Peak)
Quick Charge 3.0, 18W Max
100W Max, (5V, 9V, 12V, 15V, 20V up to 5A)
12V,10A
120V, 60Hz, 15A Max
11V-17.5V, 8A Max, Double to 8A Max
17.5V-60V, 12A, Double to 24A/1400W Max
RECHARGE TIMES
AC Adapter:
12V Car Adapter:
6x SolarSaga 200W Solar Panel:
4x SolarSaga 200W Solar Panel:
2x SolarSaga 200W Solar Panel:
1x SolarSaga 200W Solar Panel:
2 Hours
24 Hours
2.5 Hours
4 Hours
7.5 Hours
14.5 Hours
AC Adapter:
12V Car Adapter:
6x SolarSaga 200W Solar Panel:
2x SolarSaga 200W Solar Panel:
1x SolarSaga 200W Solar Panel:
2 Hours
24 Hours
2.5 Hours
7.5 Hours
14.5 Hours
GENERAL
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Warranty:
Optional Accessory:
43 lbs (19.5 kg)
15.1 x 10.5 x 12.1 in (38.4x26.90x30.75cm)
14-104F (-10-40℃)
(3+2) Years
Specifications of SolarSaga 200
SOLAR
Peak Power:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
200W
18V
11.12A
23.2V
11.76A
GENERAL
Weight:
Dimensions (folded):
Dimensions(unfolded):
Operating Usage Temperature:
Warranty:
17.5±0.5 lbs (8.0±0.3Kg)
540 x 615 x 40 mm
540 x 2320 x 25 mm
-10-65℃(14-149°F)
(3+2) Years
In The Box
Explorer 2000 Pro + 1xSolarSaga 200
- • Explorer 2000 Pro
- • 1* SolarSaga 200 Solar Panels
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 2xSolarSaga 200
- • Explorer 2000 Pro
- • 2* SolarSaga 200 Solar Panels
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 6xSolarSaga 200
- • Explorer 2000 Pro
- • 6* SolarSaga 200 Solar Panels
- • 2* Jackery Solar Series Connector
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
User Manual
Specifications of SolarSaga 200
SOLAR
Peak Power: 200W
Power Voltage: 18V
Power Current: 11.12A
Open Circuit Voltage: 23.2V
Short Circuit Current: 11.76A
General
Weight: 17.5±0.5 lbs (8.0±0.3Kg)
Dimensions (folded): 540 x 615 x 40 mm
Dimensions (unfolded): 540 x 2320 x 25 mm
Operating Usage Temperature: -10-65℃(14-149°F)
Warranty: (3+2)Years
In The Box
Explorer 2000 Pro + 1xSolarSaga 200
- • Explorer 2000 Pro
- • 1* SolarSaga 200 Solar Panels
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
Explorer 2000 Pro + 2xSolarSaga 200
- • Explorer 2000 Pro
- • 2* SolarSaga 200 Solar Panels
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
-
Explorer 2000 Pro + 6xSolarSaga 200
• Explorer 2000 Pro - • 6* SolarSaga 200 Solar Panels
- • 2* Jackery Solar Series Connector
- • 1* Car Adapter
- • 1* Car Charge Cable
- • 1* AC Charge Cable
- • 1* DC7909 to DC8020 Adapter
- • 1* User Manual
User Manual
FAQs
Q: Can the product be brought on board a plane?
A: No, because this product is a lithium battery. According to the International Standards & Regulations for the Transportation of Hazardous Materials, no lithium batteries with more than 100 watt hours may be allowed in carry-on bags.
Q: Can I charge the Jackery Explorer 2000 Pro while a device is plugged in?
A: Yes, you can. When charged with AC input, it supports a maximum power output of 1800W. When charged with AC input + DC input ( i.e. solar charging or car charging) simultaneously - it supports a maximum power output of 1800W. When charged with DC input (i.e. solar charging or car charging), it supports a maximum power output of 2200W.
Q: How to keep this product when it is not used for a long time?
A: If the battery is to be unused for a long time (more than 3 months), it should be maintained at 60-80% of the rated capacity (it's recommended to check and charge every 3 months). Store it in a dry and cool place with temperature range between 0 ℃~40 ℃, and humidity 0%~60%. Avoid contact with corrosive substances, and far from fifire and heat sources.
Q: Can it be used to jump start a car?
A: We are very sorry, but it cannot be used to jump start a vehicle. However, it can be used as power supply for automobiles. You can recharge the car via a Jackery power supply cord, which is available for purchase separately.
Q: Why is the output to the low-power device automatically turned off after several hours?
A: In case of forgetting to turn off the output (causing the battery to drain), the Low Power Mode will be turned off by default. That is, when the port is connected to a small load device(AC Output≤25W, USB Output≤2W, Car Port≤2W) for 12 hours, the device will automatically be turned off. In case you want to resume recharging, press the car port button/USB button/AC button to restart the device. If you want to turn on the Low Power Mode, long press the AC Button and DISPLAY until the Low Power Mode icon appears on the screen. If you need to turn off the Low Power Mode, repeat the above operation until the Low Power Mode icon disappears on the screen.
Q: Why does the USB Output operation indicator light up, the load device has no charging input or can't work normally?
A: Please check whether the load device is broken firstly. If the device is normal, press the USB Button to restart the output.
Q: What kind of battery can be charged by these solar modules?
A: 1, Jackery Explorer series
2, Sealed lead-acid battery
3, Colloidal lead-acid batteries
4, The open lead-acid batteries
Q: How to clean the solar surface?
A: Dust and dirt on the surface should first be removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
Q: Are the foldable solar panels waterproof? What is the fire rating?
A: Yes the material is fireproof, made of PC+ABS material with a 94V-0 fire rating.
Q: Is the Y cable connected in parallel or in series?
A: Series, and can realize up to 3 solar panels in series.
Q: The Explorer 2000 Pro Portable Power Station advertises that the product can be fully charged in 2 hours. How many 200W solar panels can be fully charged in 2 hours? How long does it take for 1 solar panel to charge? How long does it take to charge for 2 solar panels and for 3?
A: At present, under standard light source conditions, 6* 200W solar panels can be fully charged in 2.5 hours.
However, the power of the solar panels will be affected by various factors including angle/temperature/light intensity, with the actual customer's experience differing due to differences in the environment where the product is used.
Q: Can the Explorer 2000 Pro Portable Power Station Y cable be connected to the 100W solar panels? How many solar panels can be used?
A: Yes, an Explorer 2000 Pro Portable Power Station Y cable can connect up to 3 solar panels of the same type.
Note: Do not mix solar panels of different models.
Q: Why does the charger only include a cable but no adapter? Do customers need to buy an adapter themselves?
A: The Solar Generator 2000 Pro uses a new generation of technology, not requiring an adapter, and can be charged directly using an AC power cord.
Q: Is there a solar panel extension cord included?
A: No, unfortunately no solar panel extension cable is included, however we have a 5m solar panel extension cord available.
Q: How long in meters is the AC wall charger/car charger cable/solar charger cable?
A: AC charging cable: 2 meters
Car charger cable: 2 meters
Solar charging cable: 3 meters
Q: What should I do if accessories including chargers are lost? Where can customers buy a new one?
A: If the charging cable or car charging cable is lost, please contact us at hello.eu@jackery.com, where we will happily reissue a new one for free.
Q: Where can customers locate the S/N serial number on the product?
A: The S/N serial number can be located on the top at the back of the product.
Q: Does the Explorer 2000 Pro Portable Power Station have an MPPT controller?
A: Yes, the Explorer 2000 Pro Portable Power Station has an MPPT controller. The MPPT controller of Jackery E2000 Pro features a 97% solar charging conversion efficiency rate.
Q: Does the Explorer 2000 Pro Portable Power Station use a pure sine wave inverter or a modified sine wave inverter?
A: The Explorer 2000 Pro Portable Power Station uses a pure sine wave inverter.
Q: Does the Solar Gnerator 2000 Pro support pass through charging? Does this affect battery life?
A: The Solar Generator supports pass through charging without compromising battery life.
When charging with AC input, the maximum power of AC output is 1800W.
When charging with DC input (charging via a solar panel or car charger, the AC output maximum power is 2200W.
When AC input + DC input (charging via a solar panel or car charger) are charged at the same time, the maximum AC output power is 1800W.
Q: Compared with the Explorer 2000 Portable Power Station, what is the biggest advantage of the Solar Generator 2000 Pro?
A: The biggest advantage is solar fast charging, supporting charging with 6 200W solar panels, fully charged in under 2.5 hours.
Q: A small load prompt function has been added. The Explorer 2000 Pro Portable Power Station will turn on the small load when the wattage is lower than what amount?
A: When the device wattage is lower than the figures in the sheet, the Explorer 2000 Pro Portable Power Station will be automatically turned off for 12 hours.
Q: How long does the Explorer 2000 Pro take to charge for car charging, wall charging and solar charging?
A: The car charger can be fully charged in as quickly as 24 hours;
Wall charging can be fully charged in as quickly as 2 hours;
6*200W solar panels can be fully charged in just 2.5 hours.
Q: What type of battery does the Explorer 2000 Pro Portable Power Station use? What brand of battery is used? What are the advantages compared to other brands of batteries?
A: The Explorer 2000 Pro Portable Power Station uses a ternary lithium battery, and the battery brand is a BAK battery. The battery itself is not particularly different.
Q: It is advertised that the Explorer 2000 Pro Portable Power Station has a cycle life of 1000 cycles. Can the product still be used after the service life has been reached? Can it be returned to the factory for repair?
A: After 1000 times of full discharge the cycle life has only 80% remaining of its capacity. It is not the product cannot be used, but the capacity is not like the capacity of 2160Wh when it was newly purchased.
Q: The website says that the Explorer 2000 Pro Portable Power Station should be charged once every three months. After three months, the Explorer 2000 Pro Portable Power Station has for instance 50% or more power - does this still need to be recharged to 100%?
A: The main purpose of this suggestion is to prevent users running out of battery power when they are required to to use electricity in an emergency.
Q: Can customers use a car charger, wall charger and solar panel to charge the Explorer 2000 Pro Portable Power Station at the same time?
A: No, the three cannot be used at the same time. The solar panel and the car charger cannot be used at the same time - otherwise, the fuse of the customer's car charger may be blown.
Q: How do you turn off the small load of the Explorer 2000 Pro Portable Power Station?
A: 1. Turn on "Low Power Mode". Then, press and hold the "AC output power button + digital display" until the low power mode icon appears on the screen.
2. In low power mode, please turn off the power when not using this product, to avoid running out of power due to forgetting to turn off the power station.
3. Turn off "low power mode" and long press the "AC output power button + DISPLAY" until the low power mode icon disappears on the screen. "
