How Long Does a 400W Solar Panel Take to Charge a 12V Battery?

Quick Answer: A 400W solar panel can charge a 100Ah 12V lead‑acid battery from 50% depth of discharge in roughly 5–7 hours of good UK sun. With a LiFePO₄ battery, the same charge takes about 3–5 hours. Real‑world conditions — clouds, charge controller losses, and the battery’s absorption phase — often extend charging beyond the textbook 3–4 hour estimate.

Key Takeaways

• A 400W panel rarely delivers full rated power; expect 300–340W in practice, lengthening charge time.

• MPPT charge controllers recover 20–30% more energy than PWM, essential for large panels.

• LiFePO₄ batteries accept high current until nearly full, cutting charge time by up to 30% versus lead‑acid.

• In the UK, average daily generation from a 400W panel is 1.2–1.6 kWh, so size your battery and array for cloudy‑day resilience.

• 0% VAT on solar and battery storage applies until March 2027, reducing upfront costs.

The Real‑World Gap Between Theory and Practice

In practice, a 400W panel takes 5–8 hours to charge a 100Ah 12V battery — double the textbook 3–4 hour estimate. The standard formula (battery watt‑hours ÷ panel watts × sun hours × efficiency) ignores the real‑world losses that stretch charging time.

Absorption charging is the biggest hidden brake. Once a lead‑acid battery passes 80% state of charge, its ability to accept current plummets.

The final 20% can take 1–4 hours, regardless of how much solar power is available. This slow taper is often mistaken for a weak panel or poor sunlight. It’s normal — and it applies to lithium batteries too, though to a lesser degree.

Weather volatility compounds the issue. On an overcast day, a 400W panel might produce only 80–160W. That can quadruple your charge time, leaving you with a half‑empty battery when you need it most. Off‑grid reliability demands that you size your system for the mediocre days, not the sunny ones.

Battery chemistry confusion doesn’t help. Many users don’t know whether their lead‑acid or LiFePO₄ battery can safely handle the high current a 400W panel can deliver. A mismatch leads either to underutilisation (leaving solar power unused) or premature battery failure. The right charge controller and battery pairing make all the difference.

Why the Charging Math Feels Broken

“Is the math broken?” It’s a fair question when your real charge time (6 hours) is double the theoretical one (3 hours). The answer lies in three factors the simple formula ignores: peak sun hours are not daylight hours, real panel output is well below the label, and depth of discharge determines the energy you actually need to replace.

Peak Sun Hours ≠ Daylight

A 400W panel delivers near‑full power only during the 4–5 hours around solar noon when the sun’s intensity is highest. During the remaining 8–10 hours of daylight, output drops to 10–30% of rated power. 400W × 4 peak sun hours = 1.6kWh, not 400W × 14 hours of daylight. That 1.6kWh is your usable daily generation — before any system losses.

The “Halve the Rating” Heuristic

Experienced off‑grid users often treat a 400W panel as a 200W panel and halve the battery’s amp‑hour rating when estimating charge time. It’s crude but effective.

Example: A 100Ah battery becomes “50Ah” and a 400W panel becomes “200W”.

50Ah × 12V = 600Wh. 600Wh ÷ 200W = 3 hours. That 3‑hour estimate already bakes in real‑world losses and often proves more accurate than the textbook formula.

System Voltage Matters

A 12V battery demands higher current for the same power than a 24V or 48V system.

400W ÷ 12V = 33.3A. At 24V, it’s only 16.7A. Higher current means greater resistive losses in cables and connectors. For large solar arrays, stepping up to 24V or 48V reduces those losses and lets you use thinner, cheaper wiring. If you’re building a system around a 400W panel, consider a 24V battery bank.

Charge Controller Showdown: MPPT vs PWM

An MPPT charge controller recovers 20–30% more energy than PWM — for a 400W panel, it’s essential. The difference isn’t subtle: MPPT extracts nearly all available power, while PWM wastes about 40%.

MPPT controllers convert the panel’s high voltage (typically 18–30V for a 400W panel) down to battery voltage while boosting current. That’s how they extract nearly all the panel’s power. PWM controllers, by contrast, simply drag the panel voltage down to battery level, dumping the excess as heat.

A 40A MPPT controller is the minimum for a 400W panel on a 12V system. Undersizing creates a bottleneck that caps charging current, extending charge time further.

The “100W per 100Ah” benchmark puts this in perspective. A 100W panel can recharge a 100Ah battery from 50% SOC in about 8 hours of strong sun.

A 400W panel theoretically cuts that to 2 hours. Real‑world, with an MPPT controller, you’re looking at 4–5 hours. With PWM, you might not finish in a day.

Battery Chemistry & Depth of Discharge: Why It Matters

LiFePO₄ batteries accept high current until nearly full and offer higher usable capacity, cutting charge time and long-term cost compared to lead‑acid — that’s why battery chemistry matters for a 400W panel setup.

LiFePO₄ batteries accept high current right up to about 95% state of charge. That means a 400W panel can push energy in at near‑full speed almost the entire time, with only a short absorption taper at the end. Lead‑acid, by contrast, slows down dramatically after 80%, wasting your panel’s peak output.

Depth of discharge also matters. If you run a lead‑acid battery down to 20% SOC (80% DoD), you’re damaging it.

The safe usable capacity is only 50% of the label rating. LiFePO₄ gives you 80–90% usable capacity. Charging from a deeper discharge takes longer because you’re replacing more energy — but with lithium, you get that energy back without killing the battery.

The 10% efficiency gap between the two chemistries adds up. For every 1kWh your panel generates, a lead‑acid battery stores 850Wh; a LiFePO₄ stores 950Wh. Over a year, that’s a significant chunk of lost solar energy.

Real‑World Factors That Extend Charge Time

Even with the right controller and battery, a dozen small losses chip away at your 400W panel’s output.

Temperature and Wiring Losses

Heat reduces panel efficiency by about 0.35% per °C above 25°C. On a 35°C summer day, that’s a 3.5% drop — your 400W panel behaves like a 386W panel.

Cold weather boosts panel voltage but slows battery chemistry, especially for lead‑acid. Wiring losses add another 3–5%. Use cables rated for 33A or more and keep runs as short as possible.

Shading and Soiling

Partial shading from a tree branch or chimney can cut output by 20–50%. Even a single leaf on one cell can drag down an entire string. Dust and dirt reduce output by 5–10%. Clean panels monthly with deionised water and a soft brush.

The Absorption Phase

The final 10–15% of charge is always slow. For lead‑acid, the absorption phase adds 30–60 minutes.

For LiFePO₄, it’s 1–2 hours. This is not a system fault — it’s how batteries prevent overcharging. If you see your charge current tapering off when the battery is nearly full, your system is working correctly.

UK‑Specific Solar Charging Considerations

In the UK, a 400W panel generates 1.2–1.6 kWh per day on average, and peak sun hours range from 2.8 to 4.0 — so you must size for the worst day, not the best. That’s because the UK’s latitude and weather cut output compared to sunnier climates.

Financial support is not a grant — but it still helps:

• 0% VAT: Applies until 31 March 2027 on solar panels and battery storage for residential installations (then 5%); GOV.UK VAT Notice 708/6.

• Smart Export Guarantee (SEG): Pays 3–15p/kWh for surplus exported electricity; requires MCS-certified installation and smart meter (c).

• ECO4 scheme: Can fully fund solar for eligible low‑income households (strict criteria, closes December 2026) (Ofgem ECO4).

• Planning permission: Generally not needed for rooftop solar, but check with your local authority for conservation areas, listed buildings, or flat roofs.

Electricity prices average around 24p/kWh (2026). Self‑consumption is the key to savings. A battery storage system that lets you use your solar energy after dark can cut your payback period to 8–12 years. For many UK homes, combining solar with battery storage turns a marginal investment into a solid one — are solar generators in the UK worth it explores the numbers in detail.

Sizing Your System for UK Conditions

A 400W panel alone won’t guarantee a full battery every day. You need to size for the worst‑case weather, not the best.

Buffer for clouds: Add 30% to your solar wattage. If a 400W panel gives you one‑day charging in ideal sun, a 500W+ array ensures a full charge even on mediocre days.

Battery capacity: Size your battery to cover at least one day’s consumption. For a 500Wh daily load, a 100Ah 12V LiFePO₄ battery provides 1,200Wh usable (80% DoD) — a comfortable margin. With lead‑acid, you’d need a 200Ah battery to get the same 1,200Wh (50% DoD).

Inverter sizing: Ensure your inverter can handle the 400W panel’s peak output plus any future expansion. A 500W+ inverter avoids clipping and leaves room for an extra panel.

For a comprehensive walk‑through of system design, including charge controller and battery matching, see our guide to solar generator UK.

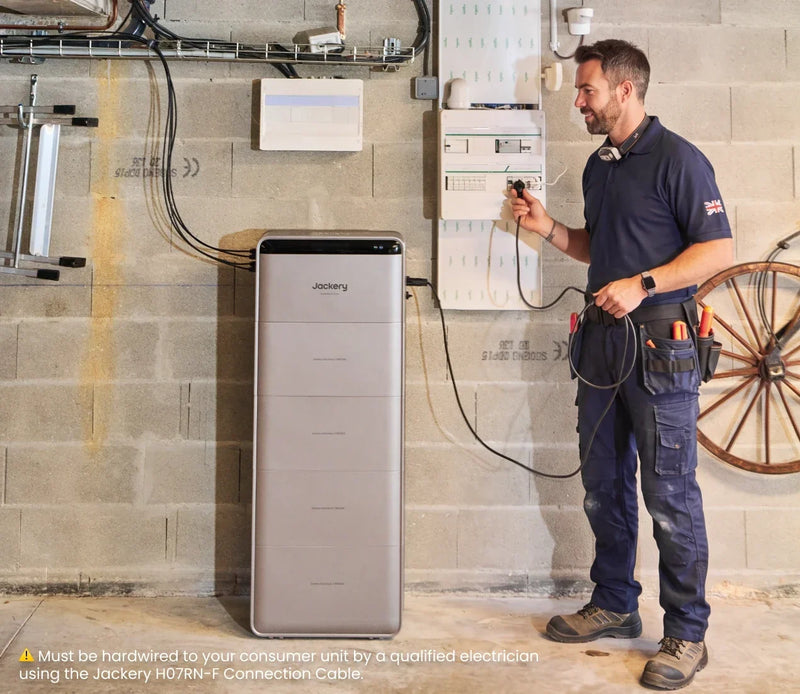

Powering Your Setup with Jackery SolarVault 3 Series

Jackery’s upcoming SolarVault 3 Series is designed to help UK households store solar energy and provide seamless backup when the grid goes down, connecting directly with your solar array and home circuits for whole-home storage tailored to UK conditions. While full specifications are not yet confirmed, it is being engineered as a scalable solution. For those exploring portable battery systems alongside fixed solar, our guide to solar generators in the UK breaks down the differences.

Frequently Asked Questions (FAQ)

Do I need a charge controller for a 400W solar panel?

Yes, a charge controller is essential to regulate voltage and prevent battery overcharging damage.

Can I mix old and new batteries in the same bank?

Avoid mixing, as differing ages and internal resistances reduce overall performance and lifespan.

What happens if my battery is fully charged when the sun shines?

The charge controller enters float or trickle mode, safely maintaining a full battery without overcharging.

How do I safely clean my solar panels?

Use deionised water and a soft brush or squeegee to prevent scratching the glass surface.

Can I use a 400W panel to power appliances without a battery?

You can, but only while the sun shines; voltage fluctuates wildly without a battery, risking appliance damage.
